The smart indoor air quality monitor TL Flair IAQ Monitor

IAQ Intelligent Indoor Air Quality Monitor The TL Flair Monitor is a commercial air quality monitor designed to measure a range of pollutants and air quality parameters. The device supports many data transfer methods and has a wide range of functions for data collection, analysis and export. Up to 50 million air quality readings can be stored in the device memory and can be displayed using the built-in touchscreen, relevant iOS and Android apps, browser dashboard, and exported via SSD from TL Flair device for further data analysis.

Certifikates and recommendations:

Customizable solution for air monitoring





Particulate matter
PM2,5

TVOC

CO2



Temperature

Humidity





TL Flair Monitor is designed to work with customizable indoor sensors, that can be integrated into the modular cartridge design as shown.

These sensors cartidges are interchangeable and can be specially made to sense a specific chemical that your facility may need to monitor.

formaldehyde
HCHO

Carbon monoxide
CO

Ozone
O3

harmful
Nitrates

harmful
Sulphates

More

User Interface







Hardware Features



Customizable
Sensor Modules

Wi-Fi
Connection

Ethernet Port

8GB On-Board
Memory

Real Time
Cloud
Communication

8. hour
battery life

Micro SD Card
/ secondary storage

7″ Color
Touchscreen
Display

Area Size



Software Features



Monitor and
manage multiple
devices

View real-time
data and trends

SSL/TLS
Encryption

Identify sources
of polution

Compare readings
across devices

Export
historical data

Receive
notifications

Quick Install





Smart Building Automation





  • Maximize the performance of your ThinkLite + ICon Pro (TiO2) and/or HVAC enhanements, and smart thermostats with with flexible connectivity options offered by  ThinkLite.
  • Seamlessly integrate to your boilding’s automations control system through our open API, BACnet, and any custom integrton that may be required.



Certifikates



Color:

Order

Download:

pdf TL Flair leaflet

Technical Specifications



Input votage DC 5V
Imput current 1,8 A
Power supply AC 110 / 230 V,  50/60 Hz
Power consumption 10 W
Battery 5200 mAh / 4,2 V
Usage time on battery 5 hours with screen on

11 hours with screen off
Connection Wi-Fi (2,4 GHz),
Ethernet, Supporting for hidden SSIDs,
Captive Portal and proxy servers
Control panel /Screen 7″ full LCD colour touchscreen
Data logging 8GB of on-board memory
(>50.000.000 data points),
>100 years at 1 minute interval
Memory pamięć zewnętrzna,
przechowywanie w chmurze,
karta pamięci Mikro -SD
Log interval 1 minute , 1 hour, 1 day
Operational temperature 0 oC – 50 >oC
Operational humidity 5 do 95% RH, bez kondensacji

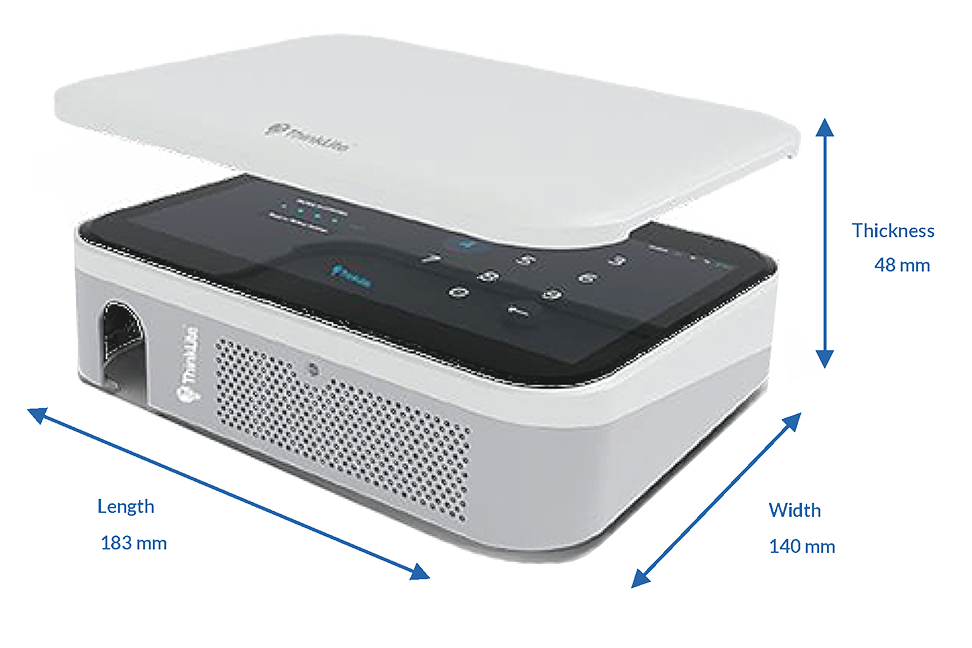

Dimensions: 183 x 140 x 48 mm
Weight 0,80 kg
Housing material ABS
Accessories Power supply unit, USB cable
Wall plugs for mounting on the wall and screw
Warranty TL Flair IAQ monitor  5 years or lifetime
Warranty & Durability of sensor modules 2 years

Sensors

 CO2   sensor permanently installed in the body
Sensor type Non-Dispersive infrared Detector (NDIR)
Measuring range 400 – 2000 ppm
Sensor Output Resolution ±3% ±50 ppm
Accuracy 1 ppm



TVOC sensor module
Sensor type Metal Oxide Semiconductor (MOS)
Measuring range 0 – 60000 ppb
Sensor Output Resolution ±15 %
Accuracy 1 ppb



Temperature sensor
Sensor type Digital sensor
Measuring range -16 oC do +100 oC
Sensor Output Resolution ±0,38% oC
Accuracy 0,38 oC





Particulate matter  PM2,5  module
Sensor type Laser Particle Sensor
Measurement method Light scattering (350 nm laser)
Measuring range 1-1000 μg/m3
Sensor Output Resolution ±10%
(<30μg/m3 : ±3μg/m3)
Accuracy 1 μg/m3
Measurable particle size 0,3 – 2.5 μm



Relative humidity
Sensor type Digital sensor
Measuring range 0 – 99 %
Sensor Output Resolution ±5 %
Accuracy 1 %



Data of other sensors available on request:
– HCHO Formaldehyde Sensor
– CO Carbon Monoxide Sensor
– O3 Ozone Sensor
– Harmful Nitrate Sensor
– Harmful Sulphate Sensor

Please send inquiries regarding sensors for other substances by e-mail
